혈액냉장고 MBR-705GR

작성자관리자

규격: 770(W) x 830(D) x 1955(H) mm 622 liters (22.0 cu.ft.) Temperature 4℃ 220V/60Hz

본문

Spectifications

External Dimensions (W x D x H)	770 x 830 x 1955 mm
Internal Dimensions (W x D x H)	650 x 697 x 1500 mm
Volume	617 litres
Net Weight	210 kg
Capacity	360 bags (450ml)
Temperature Setting Range	4 °C +/-1 °C (AT 35°C)
Controller	Microprocessor
Display	Digital LED
Temperature Recorder	MTR-G04 (Included)
Temperature Sensor	2 bottles with thermistor sensor
Exterior Material	Baked-on acrylic finish galvanised steel
Interior Material	Baked-on acrylic finish galvanised steel
Outer Doors	Insulated steel frame with double-layer glass windows
Outer Door Lock	1
Inner Doors	3 Acrylic
Shelves	6 stainless steel roll-out drawers
Max. Load - Per Shelf/Drawer	40 kg
Max. Load - Total	-
Access Port	2
Access Port Position	left and right hand side
Access Port Diameter	30
Casters	4
Interior Light	-
Power Failure	Y
High Temperature	Y
Low Temperature	Y
Door Open	Y
Power Supply	Local
Noise Level	-

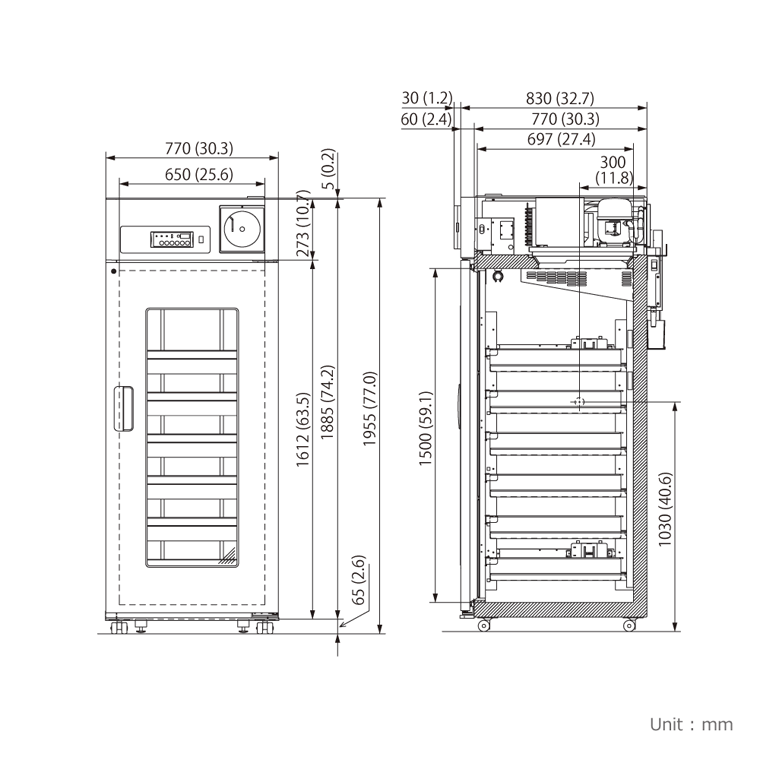

Dimensions

05_size_1000x1000.gif?rev=654878e90e924ea7a9369e820f762d6f&sc_lang=en
