혈액냉동고 MDF-DU502VH

작성자관리자

본문

Spectifications

External Dimensions (W x D x H)	790 x 882 x 1993 mm
Internal Dimensions (W x D x H)	630 x 600 x 1400 mm
Volume	528 litres
Net Weight	246 kg
Capacity (2” Boxes in Stainless Steel Racks)	-
Capacity (3” Boxes in Stainless Steel Racks)	384 (2” boxes)
Cooling Performance	-86 to -40 °C
Temperature Setting Range	-90 to -40 °C
Temperature Control Range	-86 to -40 °C
Controller	Microprocessor, non-volatile memory
Display	LCD Touch Screen
Temperature Sensor	Pt-1000
Refrigeration System	Cascade
Compressors	2 x 750 W
Refrigerant	HC
Insulation Material	PUF / VIP Plus
Insulation Thickness	80 mm
Exterior Material	Painted Steel
Interior Material	Painted Steel
Outer Doors/Lid	1
Outer Door Lock	Y
Inner Doors/Lid	2 pieces (insulated)
Shelves	3
Max. Load - Per Shelf	50 kg
Max. Load - Total	150 kg
Vacuum Release Port	2 (1 automatic, 1 manual)
Access Port	3
Access Port Position	Back x 1, Bottom x 1
Access Port Diameter	17
Casters	4 (2 leveling feet)
Power Failure	V-B-R
High Temperature	V-B-R
Low Temperature	V-B-R
Filter	V-B
Door Open	V-B
Power Supply	Local
Frequency	Local
Noise Level	52 dB [A]

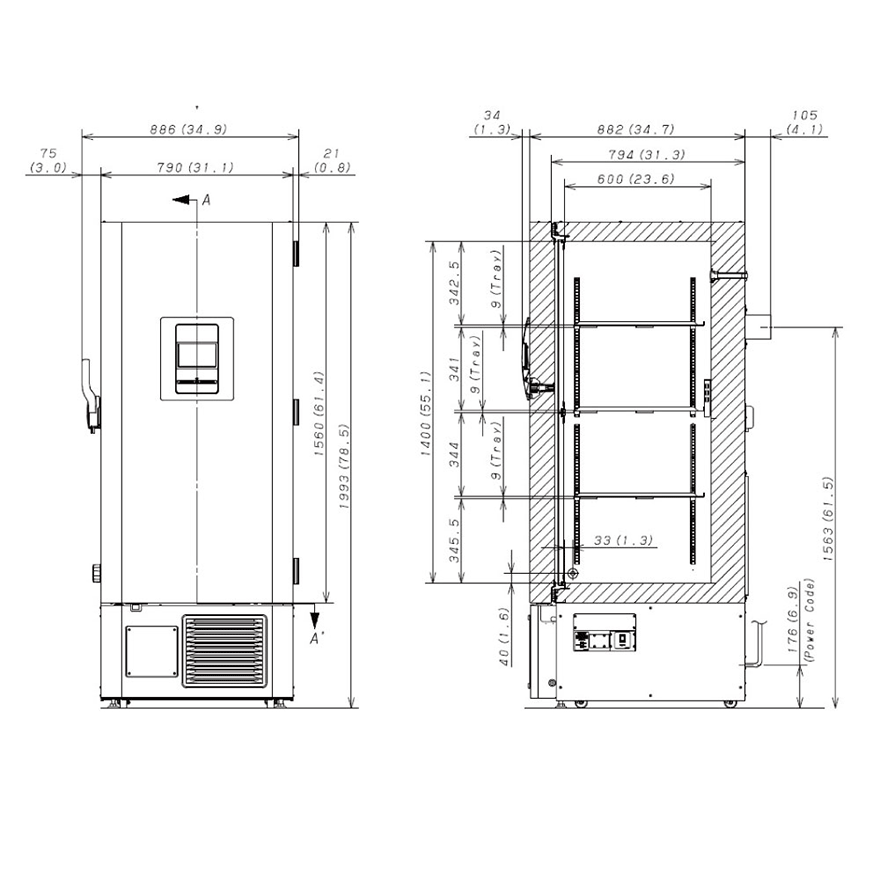

Dimensions

mdf-u502vh_1000-1000.gif?rev=64880299a5934a2eb5f35eccfb1c0c62&sc_lang=en
