혈액냉동고 MDF-DU702VX

작성자관리자

본문

Spectifications

External Dimensions (W x D x H)	1030 x 882 x 1993 mm
Internal Dimensions (W x D x H)	870 x 600 x 1400 mm
Volume	729 litres
Net Weight	328 kg
Capacity (2” Boxes in Stainless Steel Racks)	576 (2” boxes)
Capacity (3” Boxes in Stainless Steel Racks)	-
Cooling Performance	-86 °C
Temperature Setting Range	-50 to -90 °C
Temperature Control Range	-50 to -86 °C
Controller	Microprocessor, non-volatile memory
Display	LCD Touch Screen
Temperature Sensor	Pt-1000
Refrigeration System	Independent Dual-Cooling
Compressors	2 x 1100 W
Refrigerant
Insulation Material	PUF / VIP Plus
Insulation Thickness	80 mm
Exterior Material	Painted Steel
Interior Material	Painted Steel
Outer Doors/Lid	1
Outer Door Lock	Y
Inner Doors/Lid	2
Shelves
Max. Load - Per Shelf	50 kg
Max. Load - Total	515 kg
Vacuum Release Port	2 (1 automatic, 1 manual)
Access Port	3
Access Port Position	back x 1, bottom x 2
Access Port Diameter	17
Casters	4 (2 leveling feet)
Power Failure	V-B-R
High Temperature	V-B-R
Low Temperature	V-B-R
Filter	Filterless design
Door Open	V-B
Power Supply	Local
Frequency	Local
Noise Level	52 dB [A]

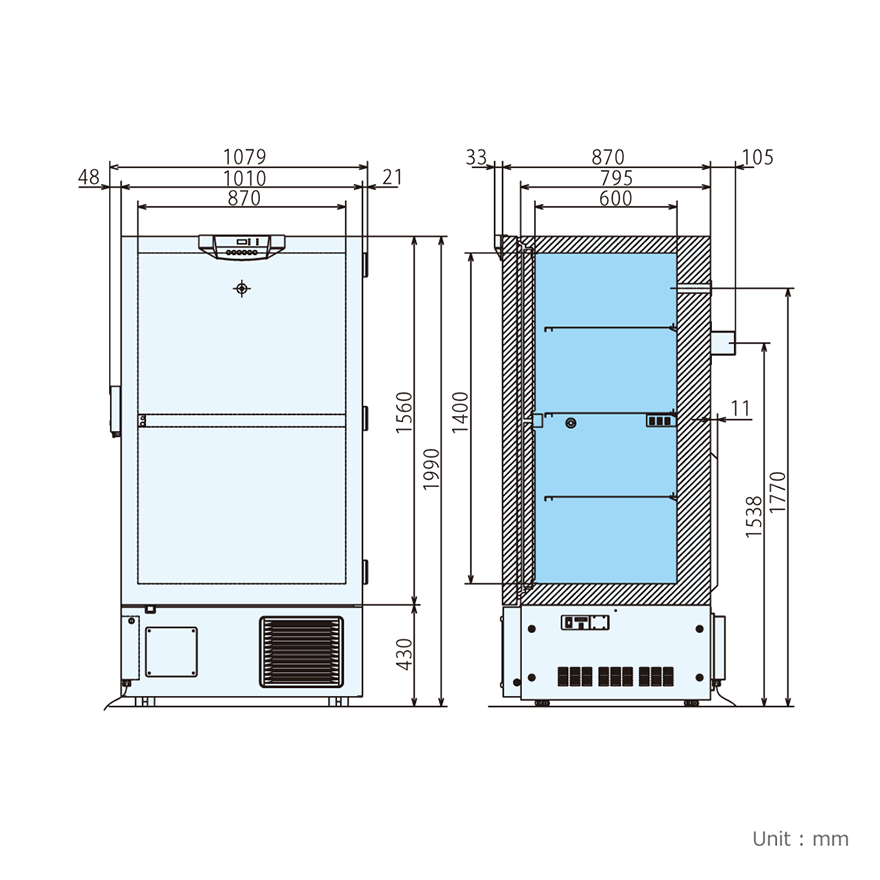

Dimensions

05_size_1000x1000_r.gif?rev=a9ef1eab875143e5877ffb10b82765a3&sc_lang=en
