혈액냉동고 MDF-MU549DH

작성자관리자

규격: External: 793 x 770 x 1802 mm Effective capacity: 479L Temperature range: -20℃ to -40℃ 220V/60Hz

본문

Spectifications

External Dimensions (W x D x H)	793 x 770 x 1802 mm
Internal Dimensions (W x D x H)	649 x 614 x 600 (per chamber) x 2 mm
Volume	479 litres
Net Weight	165 kg
Capacity (Aluminium Racks 2” Boxes)	288
Capacity (Stainless Steel Racks 2” Boxe)	-
Cooling Performance	-40 °C
Temperature Setting Range	-45 to -18 °C
Temperature Control Range	-40 to -20 °C
Controller	Microprocessor, non-volatile memory
Display	LED
Temperature Sensor	Thermistor
Refrigeration System	Direct cooling system
Compressors	400 W
Refrigerant	HC
Insulation Material	PUF
Insulation Thickness	70 mm
Exterior Material	Painted Steel
Interior Material	Painted Steel
Outer Doors/Lid	2
Outer Door Lock	Y
Inner Doors/Lid	-
Shelves	6 (Dimensions : W624 x D510 mm)
Max. Load - Per Shelf	30 kg
Max. load - Total	-
Vacuum Release Port	-
Access Port	2 (1 per chamber)
Access Port Position	Back
Access Port Diameter	30
Casters	4 (2 leveling feet)
Power Failure	V-B-R (V = Visual Alarm, B = Buzzer Alarm, R = Remote Alarm)
High Temperature	V-B-R
Low Temperature	V-B-R
Filter	-
Door Open	-
Power Supply	MDF-MU549DH-PE : 220/230/240V \| MDF-MU549DH-PK : 220V
Frequency	MDF-MU549DH-PE : 50Hz \| MDF-MU549DH-PK : 60Hz
Noise Level	42 dB [A]

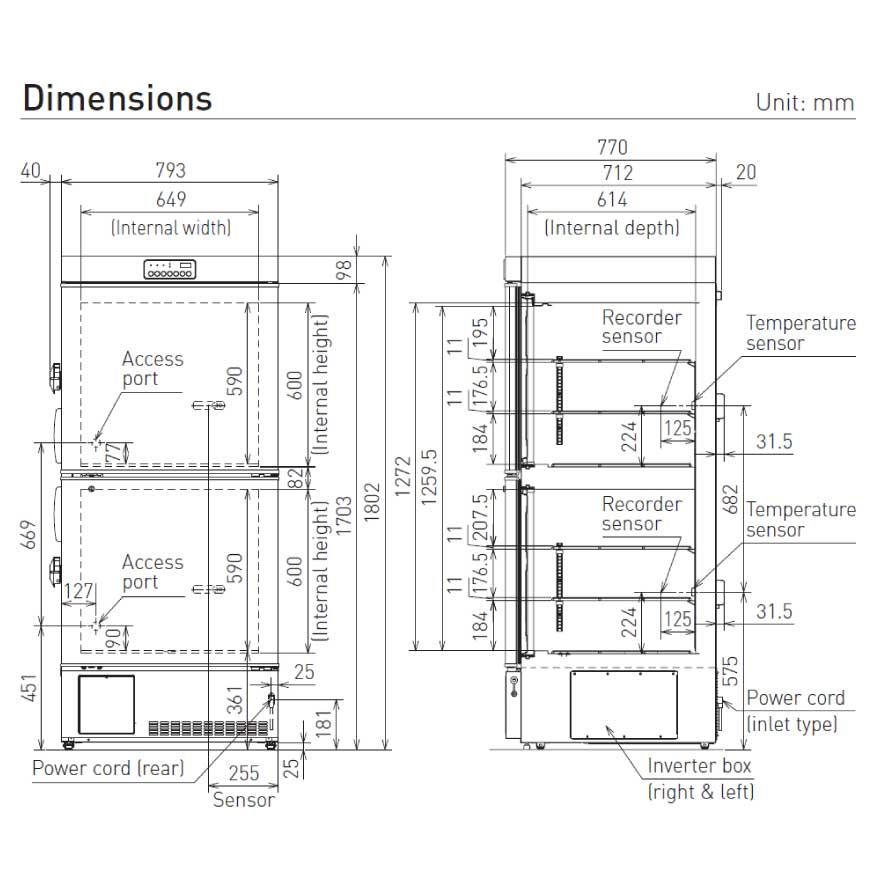

Dimensions

mdf-mu549dhl_drawing_880_880.jpg?rev=01eed525eca04db9a01dd95620b0e1c3&sc_lang=en
