의약품냉장고 MPR-S500H

작성자관리자

본문

Spectifications

External Dimensions (W x D x H)	900 x 650 x 1824 mm
Internal Dimensions (W x D x H)	800 x 510 x 1425 mm
Volume	554 litres
Net Weight	140 kg (MPR-S500H-PE) /139 kg (MPR-S500H-PA)
Temperature Setting Range	+2 to +14 °C
Temperature Control Range	+2 to +14 °C
Controller	Microprocessor
Display	Digital (White graphic OLED), 1°C (increment of 0.1)
Temperature Sensor	Thermistor
Cooling Method	Forced air circulation
Defrost Method	Cyclical defrost (plus forced defrost)
Refrigerant	R-600a
Insulation Material	PUF (Rigid polyurethane foamed insulation)
Exterior Material	Painted steel
Interior Material	Painted steel
Outer Doors	2 (Highly insulated double glass door with tempered glass)
Outer Door Lock	Y
Shelves	6 coated steel wires
Drawers	-
Max. Load - Per Shelf/Drawer	50 kg
Max. Load - Total	300 kg
Access Port	2
Access Port Position	Back
Access Port Diameter	30 mm
Casters	4 [2 levelling feet]
Interior Light	LED
Power Failure	V-B-M-R (Optional MPR-48B2-PW required) [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
High Temperature	V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
Low Temperature	V-B-M-R [V = Visual Alarm, B = Buzzer Alarm, M = Message, R = Remote Alarm]
Door Open	V-B-M [V = Visual Alarm, B = Buzzer Alarm, M = Message]
Power Supply	-PE: 220, 230, 240V/50Hz, -PA: 115V/60Hz
Noise Level	42 dB [A]

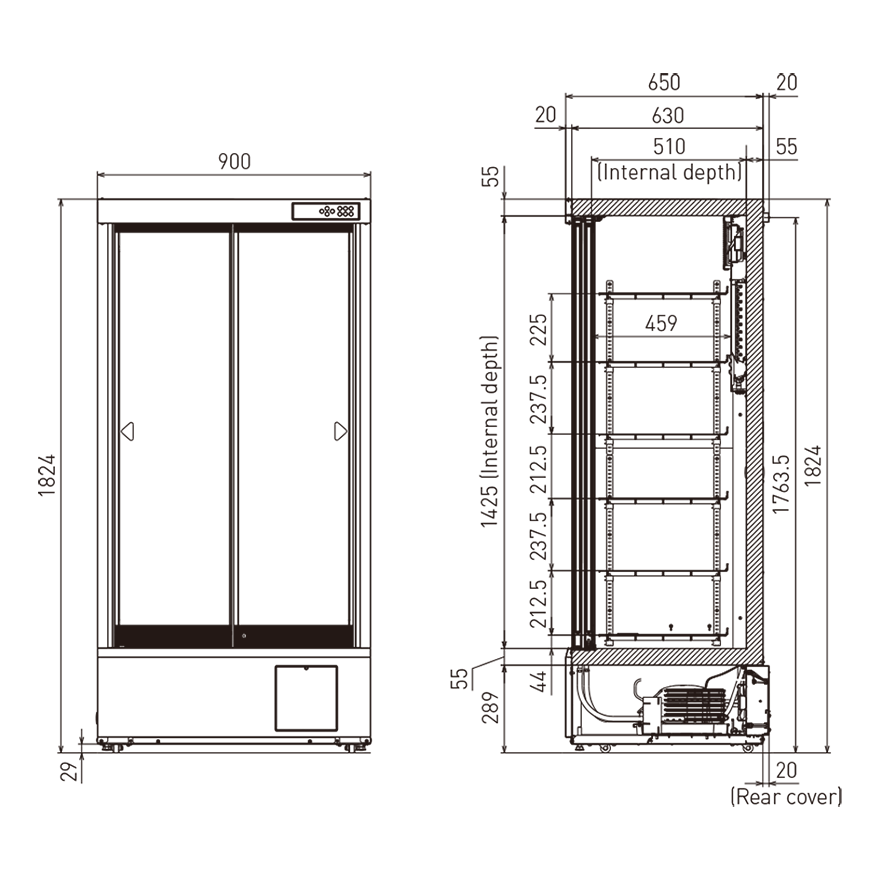

Dimensions
